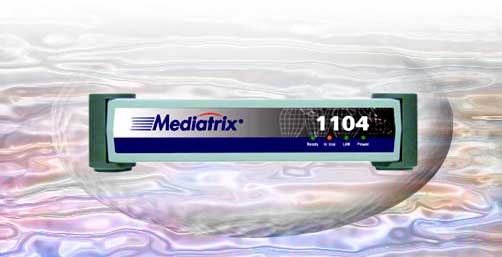

Mediatrix

Cost-effective VoIP access device

The Mediatrix®1100 and 1200 series provides IP connectivity for conventional analog telephones or Group 3 fax machines. Designed for either desktop or wiring closet installation, it protects customer investment in existing analog devices. Depending on the model, connects 2 to 24 phones and/or faxes to a corporate or Carrier-based VoIP network through a single 10/100 BaseT Ethernet port. It can be used to provide connectivity to broadband access equipment for a Service Provider or Carrier's IP Telephony offering to the residential, enterprise or SOHO markets.

Contact ABP to learn more about Audiocodes VoIP gateways.

Feature List
Technical Specifications
Product Applications Scenarios
Downloads

New Item

Click here to find out more about the Mediatrix 2102 Residential IP Telephony device.

General Specifications

To ensure maximum flexibility, Mediatrix access products can be configured to support the SIP, H.323 or MGCP/NCS IP Telephony signaling protocol, can dynamically detect the most commonly used IP Telephony codecs and fax protocols, including T.38, and can be auto-provisioned, remotely managed and upgraded, through Mediatrix’ own innovative and user-friendly tool, the User Manager Network.

An automatic bypass function provides a connection directly to the PSTN in the event of an IP network failure or power outage. In addition, the Mediatrix acess products can be used as a gateway for Key Systems onto a VoIP network.

For Corporate, Residential and SOHO end-users, the Mediatrix acess products provide a simple and cost-effective way to migrate to an IP-based Telephony infrastructure without the need to discard existing analog devices.

For Service Providers and Carriers, it creates additional revenue generating opportunities by immediately bringing existing users on line to new IP Telephony services.

The Mediatrix acess products protects the investment in wiring and handsets, one of the most expensive parts of a network. Its multi-protocol and remote upgrade capabilities protect it from obsolescence as standards evolve and new service offerings are created.

Features

Cost-effective VoIP access device enabling high-value IP Telephony applications

IP connectivity for up to four existing analog phones and/or faxes

Desktop or wiring closet installation protecting customer investment in existing analog devices (phones/faxes)

PSTN-quality voice over IP networks.

Transparent migration to an IP Centrex solution.

Deployable in a SIP, H.323 or MGCP/NCS based VoIP network.

Auto configurable, remotely manageable and upgradeable.

Interoperable with products of leading industry vendors.

TOP

Technical Specifications

IP Telephony Protocols:
SIP, H.323, MGCP/NCS

Telephony Features Supported:
Caller ID, Call Waiting, Caller ID on Call Waiting, Call on Hold, Call Forward, Call Forward on Busy or on No Answer, Call Transfer with or without Consultation, 3-Way Conferencing, Call Transfer with 3-Way Conferencing Consultation, Early H.245 and Out-of-Band DTMF, H.450 basic services, Dynamic De-Jitter Buffer Manager, Voice Activity Detection.

Vocoders:
G.711 (A-law, µ-law), G.723.1, G.729a,b

Echo Cancellation:
G.168

Silence Suppression:
Silence detection / suppression and Comfort Noise Generation level software adjustable

Network Management Protocols:
SNMPv2 (SIP, MGCP and NCS versions), HTTP (H.323), TFTP, DHCP

Real-Time Transport Protocols:
RTP per RFC 1889, RFC 1890, RTCP

Ethernet Connection:
1 RJ-11 connector, PSTN bypass

Analog Connection:
4 RJ-11 connectors, analog phone/fax (FXS) interface

Bypass Connection:
1 RJ-11 connector, PSTN bypass

QoS:
802.1q, DiffServ

Real Time Fax:
Group 3/Super G3 Fax real time FoIP over clear channel (G.711) or T.38

Product Application Scenarios

SOHO Scenarios

Multi Tennant / Dwelilng Scenarios

SME Scenarios

Branch Office Scenarios

Downloads Product Brochure

Mediatrix 1102

Mediatrix 1104

Mediatrix 1124

Mediatrix 1204
