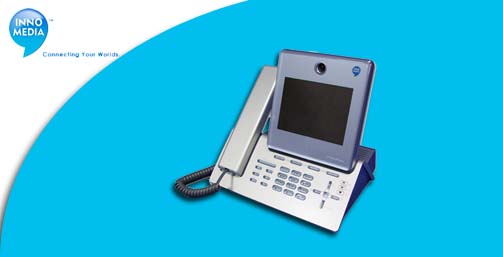

IP Videophone MTA5531

The third generation of IP VideoPhones which comes with an abundance of exciting new features

The MTA 5531 is compatible with 3G networks and mobile videophones. Calls can be made between fixed line videophones and 3G mobile videophones, thus enabling face-to-face communications between homes, offices and mobile users on the road.

The built-in NAT Router enables the end user to share the same broadband link for both video telephony and internet access without increasing access charges for separate IP addresses. With a priority switch built-in, video telephony traffic is given preference to ensure smooth video conversation even when someone is using the same link for internet surfing. It supports network based firewall and border traversal solutions offered by service providers, allowing telephony services to be deployed behind NAT/Firewall environments in enterprises. In addition, the MTA 5531 supports VLAN routing for better control of video, voice and data traffic.

The MTA 5531 is equipped with user-friendly menu architecture powered by an icon-based GUI system. The user can easily navigate and access the set of rich features available in the VideoPhone. The built-in voice and video* answering machine enables the caller to either leave a voice message or a live video* message on the videophone. The user can easily retrieve recorded video* messages and record his/her own greeting message directly on the VideoPhone.

Additional features on the higher-end videophones include Wi-Fi client capability for connection to 802.11b networks, with an uplink access of up to 11Mbps, the VideoPhone can be deployed anywhere in the home or office and also PSTN line connectivity and fallback features, which enable the user to make both IP Voice/Video calls over the broadband IP network, as well as regular voice calls via the traditional PSTN network.PSTN is an appealing feature for both incumbent and competitive service providers as it enables them to provide IP Voice and Video services on top of existing PSTN services via a single device. The added advantage of this aside from ease-of-use, is that it allows service providers to avoid many first-line regulatory issues as users can still make outgoing calls via PSTN even in the event of a power failure.

Contact ABP to learn more about these IP videophones.

Specifications

Call Agent Softswitch :

• SIP 2.0
• H.323 V2
• MGCP*
• MD5 Authentication
• Domain Support
• Outbound Proxy

Protocol:

TCP/IP, UDP, DHCP, RTP, ARP, ICMP, HTTP 1.0, TFTP, STUN, SNTP

Codecs:

• HG.711 (a-law, u-law) , G.723.1, G.729, G.728
• H.261, H.263, H.263+

Camera :

High Quality ¼" CCD sensor

Video bandwidth :

64 kbps to 768 kbps

Video resolution :

• CIF resolution (352 x 288 pixels)
• QCIF resolution (176 x144 pixels)
• Maximum 30 frames per second

Voice Quality :

• G.168 Line Echo Cancellation
• Voice Activity Detection
• Comfort Noise Generation

Quality of Service :

• VLAN
• ToS Tagging
• Priority Switch

Network Interface:

• Wireless LAN (802.11b) PCMCIA slot
• Dual 10/100 Base-T Uplink/Downlink Ports

Display :

• 5" TFT Color LCD
• Adjustable LCD panel

Video and Audio Input:

• Auxiliary Video In/Out: (NTSC / PAL, RCA-phono)
• Auxiliary Voice In/Out: (RCA-phono)

Call features :

• Call Hold
• Call Transfer
• Call Waiting
• Call Screening
• Call Forward
• Caller ID Display/Blocking

Physical:

• Dimensions: 9.06"W x 8.58"D x 3.69"H
(230mm W x 218mm D x 93.7mm H)
• Weight: 3.31 lbs (1.5kg)

Phone features :

• NAT Router
• Firewall/Border traversal solution support
• Voice and Video* Answering Machine functions
• Messaging (SMS, MMS, Video clips)
• Icon-based GUI
• Auto Answer with Password
• Screensaver
• Games
• Tone selection
• Privacy Mode
• Full Screen Remote/Self and PIP View
• Video Input/Output
• Volume Control
• Handsfree and Speaker Phone
• Last Number Redial via Call History
• Mute
• PhoneBook
• Call History (Incoming and Outgoing Calls)
• Multi purpose LED (Network, Call Ringer, etc)
• Message LED
• Information Delivery System (IDS)
• Firmware Upgradeable
