The snom 100
Home > Products > IP Phones > snom 100

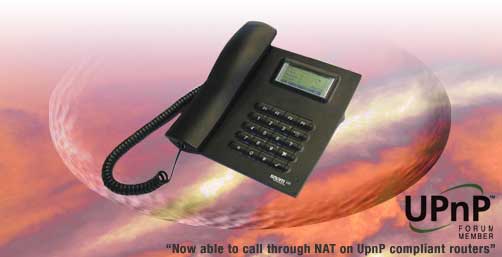

snom 100 Open standard VoIP phone

The snom 100 VoIP has just been updgraded to the new snom105.


Contact ABP to learn more about the snom 100, snom 200 or the snom 4s turnkey VoIP telephony systems.
Feature list
Technical Specifications
 Product Applications Scenarios
Downloads

vGeneral Specifications


Please check out the new snom105

vFeature List
phone book caller waiting list gr. displ. w/ 4 soft keys

SMS send/receive   27 ring tones   transfer

conference call   DTMF   echo cancellation

call divert   call list, deny list   speed dial

redialling   call hold, call wait   HTTP Server

      call waiting service


vTechnical Specifications
vHardware
Power supply:
Primary 100-240V, 4-6 watts opt., Ethernet power
Memory:
16MB DRAM, 4MB  FLASH
CPU
MPC855T efficient 32-bit, processor with MMU
Temp range:
0 C to 40 C
Display:
128 x 64 Graphical display
Keyboard:
12 alpha, 8 functions keys
Audio:
CNG- Comfort Noise generation ,VAD- Voice Activity detections
Dynamic Jitter-Buffer, Loudspeaker, Inclusive 27 ring tones
Voice compression, Echo compression, Silence suppression
Connector:
10/100 BaseT E auto-detect, Computer headset jack
Measures:
78.5 cm W x 17cm H x 7cm D, Weight 550g
vS oftware
Operating System: Linux
Configuration: Via web browser & / or Phone’s graphical display
Protocols Internet: IP, TCP, UDP, DHCP, LDAP, TFTP, CMP, SNTP, XNTP, PpoE*
Configuration: HTTP, SNMP
Voice encoding: G.711 ( u-law / A-law), G.729a**,GSM,G.726

* Future 2002 release

vProduct Applications Scenarios
ITSP Solutions Government Scenarios

SOHO Scenarios   Educational Scenarios

SME Scenarios   Event Telephony Scenarios

Branch Office Scenarios   Satellite Telephony Scenarios

Multi Tennant / Dwelling Scenarios     OEM Solutions ( snom inside!)


vDownloads
User Manual
.pdf
 3.5 MB
Data Sheet
.pdf
 150 kB
