Linksys Sipura SPA1001, SPA2002, SPA2100 & SPA3000 ATA's





Bridge the technical gap between analog telephones and fax machines in homes and businesses with IP networks

With the SPAs series, individuals and companies are able to protect and extend their past investments in telephones, conference speakerphones and fax machines as well as control their migration to IP with an extremely affordable, incremental investment.

Installed by the end user and remotely provisioned, configured and maintained by the service provider, each SPA converts voice traffic into data packets for transmission over an IP network. The SPA can be used in consumer and business IP telephony service offerings including full-featured IP Centrex. The SPA delivers clear sounding voice and reliable fax calling through its implementation of internationally recognized standards for voice and data networking.

SIPURA has been interoperable tested with ABP's recommended NAT traversal product for ISPs making this gateway virtually plug and play.

See also SIPEXpress Residential 2 Port SIP Gateway to connect two standard analog phone devices and one PSTN life line.

Please call ABP to discuss provisioning options including our new hosted provisioning server to jump start your mass deployment.
Productline Overview

 Product Application Scenarios
Resources

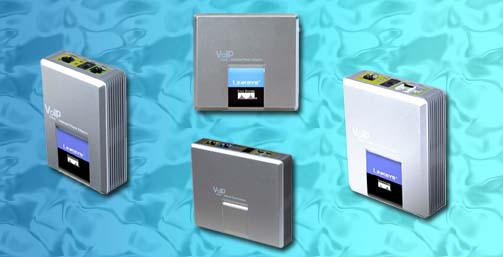

Sipura Product Line

SPA1001
1 Ports FXS, 1 LAN

SPA2002
2 Ports FXS, 1 LAN

SPA2100
2 Ports FXS, 2 LAN-WAN

SPA3000
1 Port FXS, 1POrt FXO, 1 LAN


SPA
Model

Service
Lines

Active
Calls

3 Way
Conferences

PSTN (FXO)
Connection

SPA 2100

2

4

2

0

SPA 2002

2

4

2

0

SPA 1001

1

2

1

0

SPA 3000

2

3

1

1

Notes: the SPA-2100 supports up to 2 sessions using G729.
The SPA-1001, SPA-2000 and SPA-3000 support one G729 session.

Product Line Overview

Independently configurable phone ports;

Message Waiting Indication - Visual and Tone Based

Distinctive and configurable ringing;

Selective / Anonymous Call Rejection;

Off-Hook Warning Tone; Speed Dialing; Do Not Disturb;

Call Return, Call Waiting, Cancel Call Waiting

Caller ID with Name/Number, Caller ID Blocking

Call Waiting Caller ID with name and number;

Call Forwarding: No Answer/Busy/All; Call Transfer;

Three-Way Conference Calling with Local Mixing;

Call Back on Busy;

Call Blocking with Toll Restriction;

Delayed Disconnect, Hot Line and Warm Line Calling;

Downloadable firmware updates;

Speed Dialing of 8 Numbers / Addresses

Terminating Impedance Agnostic - 8 Settings

TOP

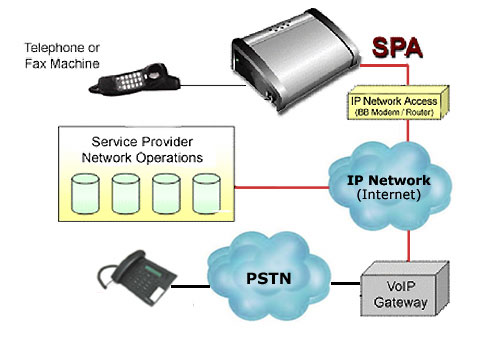

Product Applications Scenarios

Corporate Private Telephony Networks

Internet Telephony Service Provider Network for Residential Users ISP Voice Services

OPX Off Premise Extensions for PBX or IPBX (Phone and FAX)

Resources

SPA-1001 Data Sheet

SPA-2002 Data Sheet

SPA-2100 Data Sheet

SPA-3000 Data Sheet

Sipura 841 IP Phone
