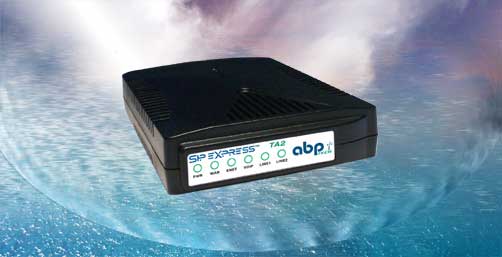

SIP Express TA2

Residential 2 Port SIP Gateway

The SIP Express Residential Gateway is an external standalone device that provides cost effective communications or IP Telephony through the internet.

The residential gateway can be used to build a private phone network over the internet or for accessing a SIP based ITSP (Internet Telephony Service Providers) network to have Toll Quality communications through access to Dial Tone, Local and or Long Distance dialing and other features like Incoming DID, Caller ID, Call waiting that may be supported by the ISP.

SIP Express has been interop tested with ABP's recommended NAT traversal product for ISPs NATPASS(TM) making this gateway virtually plug and play.

Feature List
Technical Specifications
Product Applications Scenarios
Downloads

General Specifications

The SIP Express allows to connect two standard analog phone devices like homedesktop phones, wireless phones, faxes or even a small keyless system or a PBXover ‘tie-lines’.

The Ethernet Interface will operate with XDSL, cable modem or wireless broadbandservices. The Device will operate on a single IP offering 2 simultaneously usablephone lines and a LAN port for the connection of PCs or other devices behinda basic NAT IAD on the WAN connection of the device.

Please call ABP to discuss provisioning options including our new hosted provisioning server to jump start your mass deployment.

TOP

Feature List

Provide Toll Quality voice over IP Network

Cost-effective 2 port edge device that enables IP telephony

Two 10/100 Ethernet ports for broadband access and corporate LAN

NAT Router on WAN Port

Simple web based configuration

Remotely management and remote upgrade

Automatically switches to PSTN line when device fails or for calls with specific prefixes

Technical Specifications

HardwareCPU and RTOS: BCM1112C and VxWorks

Memory:4Mbyte FlashROM, 16 Mbyte RAM

Front Panel LED Display: Power, WAN, LAN, Ethernet, VoIP

WAN Interface: 1 RJ-45 10/100 AutoNegotiate

LAN Interface: 1 RJ-45 10/100 AutoNegotiate

Telephone Interface: RJ-11 2 wire, 41VDC typ. REN:4

Software & Protocols

Current Firmware Version: 1.5.2 or 1.5.6-rc14

VoIP Protocols Supported:SIP,H323 and MGCP

SIP Support: Supports SIP Proxy, Registration and Outbound Proxy, Simple NAT field and full STUN support

SIP Features: Call hold, Call waiting, Caller ID Indication

MGCP features (MP): Wildcard RSIP , Endpoint Name style selection , Packet cable NCS1.0

Dial Completion Digit: Assign particular code for indicating end of dialed digit to start call setup.

Basic tone support: DT, BT, RBT CWT for second call arrival, OFF Hook Alert

IP address management: DHCP Client, PPPoE Client, Static IP, DHCP Server for LAN Port, NAT Support for LAN Port

Administration and Provisioning: HTTP server, Telnet Client, TFTP, NTP syncronization, Built in clock, fault log, Powerup diagnostics, Factory Configuration recovery, PING, Remote Debug and Remote boot, SNMP V2 MIB I & II , Firmware upgrade and provisioning by provisioning server.

Password: Multilevel Password (User, Supervisor/Service Provider)

CODEC Support: G.711 A-law, G.711 u-law, G.723.1, G.729a

FAX Support: Autodetection, T.38 (UDP)

Sound Quality: Adaptive Jitter Buffer, Adjustable Payload length, G.168 Echo Cancelation 16ms min., Comfort Noise, VAD stops packetization. Gain control

QOS: TOS bit. Priority tag for Layer 2 voice packet IEEE 802.1Q VLAN Support and IEEE 802.1p Priority Support planned future firmware.

Internal QOS: Give higher priority to voice packet when data packet at LAN port to be transmitted at same time

Miscellaneous

Backup PSTN line access: When no power, not registered, unit not working, access code or DialPlan

Safety Certifications:US UL60950, Europe CE EN60950

Regulatory: FCC Part 15, FCC Part 68, TBR21

Physical Specifications

Power 12VDC nominal , 12W, 110VAC US or 220V Euro plug

Environment: 0-40¼ C, 10-90% RH, Non-Condensing

Dimensions: 5.5" W  1.5"H 7" D

TO

Product Applications Scenarios

Corporate Private Telephony Networks

Internet Telephony Service Provider Network for Residential UsersISP Voice Services

OPX Off Premise Extensions for PBX or IPBX (Phone and FAX)
