Mediatrix 2102

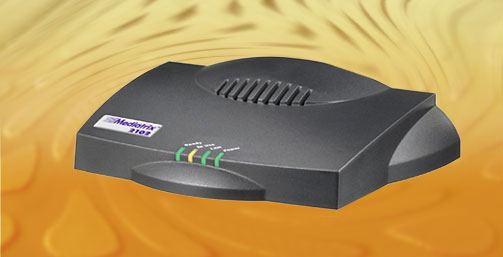

Mediatrix 2102 - Residential VoIP Access Device

The Mediatrix® 2102 features voice prioritization over data and innovative IP technology to connect up to two residential phones or fax machines and a PC directly to a broadband modem - without the need for an external router. The Mediatrix 2102 VoIP access device is equipped with two FXS ports, a PSTN bypass port and two 10/100 BaseT Ethernet ports and is the ideal platform for service providers looking to deploy cost-effective residential IP telephony.

Contact ABP to learn more about Audiocodes VoIP gateways.

Feature List
Technical Specifications
Product Applications Scenarios
Downloads

New Item

Click here to find out more about the Mediatrix 2102 Residential IP Telephony device.

General Specifications

The Mediatrix 2102 can be deployed as a residential IP telephony access device, enabling service providers to cost-effectively and securely deliver VoIP services to their subscriber base. The Mediatrix 2102 connects up to two analog phones and/or faxes, as well as a PC or a home router, to a service provider's network over a single broadband connection. An optional PSTN bypass allows 2102 users to make emergency calls and maintain phone services in the event of a power outage or network failure.

With an embedded PPPoE client and its innovative Transparent IP Address Sharing technology, the Mediatrix 2102 and the PC or router connected to the second Ethernet port have the same public IP address, eliminating the need for private IP addresses or address translation. The Mediatrix 2102 has the additional benefit of supporting high compression codecs simultaneously on both analog voice ports, thus saving valuable bandwidth.

Features

IP connectivity for analog phones and/or faxes.

PPPoE client and DHCP client

Deployable in a SIP VoIP networks

Transparent IP address sharing

PSTN bypass option

PSTN-quality voice over IP networks

Interoperable with equipment from leading industry vendors

Configuration file encryption

Ethernet port for PC or LAN

Automatic firmware and configuration file download

T.38 support

TFTP or HTTP auto-provisioning

Priority of voice over data

User-friendly web interface

High-compression codec support

Technical Specifications

(Download Complete Technical Specifications)

IP Telephony Protocol: SIP

Telephony Features Supported: Caller ID, Call Waiting, Caller ID on Call Waiting, Call on Hold, Call Forward, Call Forward on Busy or on No Answer, Call Transfer with or without Consultation, 3-Way Conferencing, Call Transfer with 3-Way Conferencing Consultation, Out-of-Band DTMF, Dynamic De-Jitter Buffer Manager, Voice Activity Detection.

Vocoders: G.711 (A-law, µ-law), G.723.1, G.729a,ab

Echo Cancellation: G.168

Silence Suppression: Silence detection / suppression and Comfort Noise Generation level software adjustable

Network Management Protocols:SNMPv2, HTTP, TFTP, DHCP

Real-Time Transport Protocols: RTC/RTCP - RFC 1889, RFC 1890, RFC 2833, RFC 3389

Ethernet Connection: 2 RJ-45 connector, 10/100 BaseT Ethernet access

Analog Connection: 2 RJ-11 connectors, analog phone/fax (FXS) interface

Bypass Connection:1 RJ-11 connector, PSTN bypass

Data Features: PPPoE client, TFTP or HTTP auto-provisioning, configuration file encryption, Transparent IP Address Sharing (Mediatrix patent pending technology), STUN Client, DHCP server

QoS: ToS, DiffServ, 802.1p, 802.1q

Real Time Fax: Group 3/Super G3 Fax real time FoIP over clear channel (G.711) or T.38

Product Application Scenarios

Residential Scenarios
