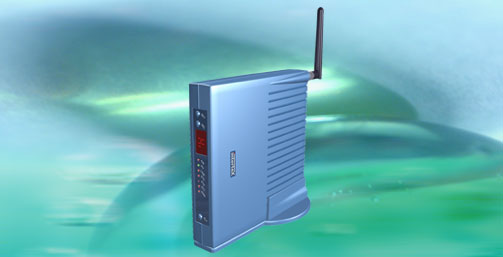

IX67 RVX - SIP IAD for SOHO
Extend security all the way to the home office of corporate employees. Guarantee 911 and ensure QOS all the way to your remote workers phones
Virtual IPBXs are becoming mainstream and the only real objection most buyers have is the fact that the company losses all phone service in the event of a broadband failure.
ABP has worked with Intertex to create the new IX67-RVX a low-cost combination device that provides emergency and local call routing for survivability, QoS, full router with SIP Firewall, remote management and VPN options.
The product has a option for wireless, FXO and FXS gateways and a small switch. All basic PBX functionality including some advanced functions such as call waiting, 3-way calling, call transfer will continue to function in the event of a broadband outage. Basically the IX67-RVX becomes your local PBX for all SIP phones and other user agents. The unit may include ports for connecting a conventional telephone and PSTN line without the need for an extra gateway.
Use it for emergency calls, IP telephony back-up and integration with your old telephony.
The IX67-RVX includes a field proven SIP enabled firewall/router technology. The IX67 stateful packet inspection (SPI) and packet filtering firewall assures that your LAN stays private, secured and protected from malicious attacks via the Internet. The unit also does QOS and has the power to run to route an prioritize about 2 T1s of data and phone traffic. (Recommended for up to 30 simultaneous calls)
This broadband router is the first in the world to allow SIP communication, VPN remote CPE management and QOS all in one device. It has a very general and well-proven SIP support and integrates a state of the art SIP proxy and a SIP registrar, dynamically controlling the NAT and firewall.
The router comes pre-Configured with several preset configurations for numerous operator broadband services and the IP addresses are retrieved and distributed automatically via DHCP (or set manually). Only a single IP address is required from your operator.
Its user interface, accessed from your web browser, is highly appreciated for its clarity and ease use and gives you the best overview and full control. Context sensitive help “?” is available to guide you if required. IP networking made easy!
Summarizing the IX67:
- Handles at least 25 to 30 simultaneous, bi-directional SIP-based VoIP calls
- Includes 3 or 4 LAN Ethernet ports (depending upon product configuration)
- Provides a stylish desk-top or wall mountable enclosure
- Offers optional VPN termination in addition to the standard VPN pass-through capabilities. This supports IPSec, PPTP and L2TP with certificate handling. DES and 3DES are hardware accelerated. Support for AES encryption is also included. The VPN gateway allows users and other offices to connect to your LAN securely, via encrypted tunnels over the Internet.
- Offers optional built-in 802.11g/b wireless access electronics and antenna
The IX67 has already won Internet Telephony's Product of the Year award.
This product is available under ABPS comprehensive ISP - Fulfillment and Provisioning program.
Contact ABP to learn more about the Intertex IX67 - RVX.
Feature List
Technical Specifications
Product Applications Scenarios
Downloads
Connects to your PC or LAN via 10/100 mbps Ethernet or USB port. Interet Gate Functions:
Router
NAT
Firewall
SIP proxy and registrar
Web server
DHCP server
The robust firewall
Compact design
VPN support
Upgradeable firmware
Share a single IP address though dynamical address translation
Share a single IP broadband connection with multiple users
Stops attacks before they reach your computers
Easy installation and configuration
TOP
Download Complete Technical Specifications
Front Panel:
Let your Internet Gate check your email accounts and notify you on the display when a new message has arrived.
IEmail Notification: The front panel gives you a presentation of the current status of the product and its connected networks.
User Assistance:
The user assistance to the Internet Gate is designed to suit all types of users, users without previous experience of firewall administration and advanced users.
Router Based Firewall:
The built-in firewall protects your computer or local network from unauthorised access. The firewall uses packet filtering, stateful inspection and application proxies together with address translation to protect your PC or local network.
Advanced Firewall Management:
The powerful yet easy to use configuration allows games and other applications to pass the firewall. The user interface is designed to allow both professionals and ordinary users to configure the firewall.
Firewall Log:
The firewall log gives you an opportunity to see what packets that has been treated by the firewall and what actions that has been taken.
Upgradeable Firmware:
The Internet Gate runs on web-upgradable firmware. That means that you may take advantage of all coming features.
USB Connection:
USB 1.1 Ether-over-USB, for connecting a single PC (i.e. a portable computer without Ethernet interface)
NAT:
The NAT function (Network Address Translation) enables you to shares a single broadband connection with multiple computers or other devices on your local network.
DHCP Server:
Automatically assigns IP Addresses to computers, or other devices, connected to your local network.
DHCP Client:
The DHCP Client enables you to get the necessary network settings from your Internet Service provider (ISP) automatically. This makes the installation easier.
PPPoE and PPoA:
PPPoE support. Connect to your DSL provider using PPPoE (PPP over Ethernet) or PPPoA (PPP over ATM), if your DSL provider uses this method.
SIP Support:
The Internet Gate has built-in supports for the Session Initiation Protocol (SIP). SIP is a new Internet protocol that has rapidly become popular in the last couple of years. It is used for communication person-to-person, in services such as telephony, presence and instant messaging (chat).
Web Server:
The built-in web server provides a ways to easily configure the product.
Auto login and Keep-alive:
USB 1.1 Ether-over-USB, for connecting a single PC (i.e. a portable computer without Ethernet interface)
VPN Virtual Private Networking:
VPN) uses a public network (i.e. the Internet) to securely connect two different networks as if they were the same network. For example, an employee can access the corporate network from home using VPN.
Wireless 802.11g:
Acces Pont IEEE 54Mb/s 802.11g withWEP encryption 64 and 128 bits. WPA encryption. Antenna fixed and removable with SMA connector.
IPBX:
Internal Extension Numberrs. Dialling Plan. Dial 0 or 9 for outside, Incoming call processing. Match incoming calls and Spam control.
Gateway FXO/FXS:
FXO Port accessible from LAN and WAN with authorization and accesible for emergency calling and other local calls. FXS port accesible for LAN/WAN> Dailling using DTMF or GUI for URL dialling. Caller ID. Fallback to telephone line to power loss.
SOHO Scenario
Multi Tennant / Dwelling Scenarios
SME Scenarios
Branch Office Scenarios
IX67 Data sheet
