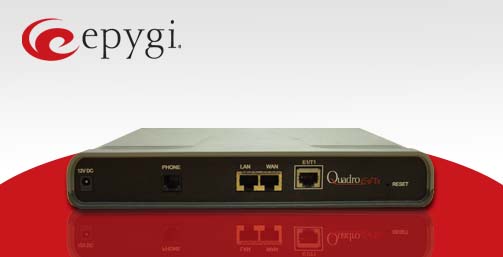

Quadro E1/T1

Ideal for bringing IP Phone service to any E1/T1 based PBX
Single Span E1/T1 Gaterway

Datasheet

Connectivity

Premise Connections

1 short-loop FXS port (RJ11)
1 Ethernet 10/100BASE T port (RJ45)

Uplink Connection Options

1 E1/T1 port to the Central Office (RJ45)
Ethernet 10BASE-T (RJ45)

USB Expansion

USB memory cards for additional voice mail and call status storage

Telephony

Voice Features

Voice Coding G.711, G.726 (16, 24, 32, 40 Kbps), G.729
NAT traversal (both manually and STUN)
VAD, CNG, G.168 echo cancellation
Out-of-band DTMF transport

PBX Features

Call statistics
Call routing
Auto attendant

Call Signaling

SIP

E1/T1 Signaling

T1 CAS
T1-PRI (T1-CCS)
E1-PRI
E1-CAS

TOP

Internet

System Configuration

Hyper Text Transfer Protocol (HTTP) server; WEB browser based configuration
Hyper Text Transfer Protocol Secure server (HTTPS)
Password control
Remote diagnostics and software upgrade

IP Services

Network Address Translation (NAT)
IPSec VPN with DES and 3DES encryption in tunnel mode
Manual and automatic IKE key support
Firewall security via:
   Intrusion Detection System
   Network Address Translation
   Policy and service-based filtering
   Stateful inspection firewall
DHCP server on the LAN side
DHCP client on the WAN side
DNS server with forwarding functionality
Simple Network Time Protocol (SNTP) for computer clock synchronization
PAP/(MS)CHAP authentication for PPP connection to the ISP
IP DIFFSERV for QoS
Mail client to send voice messages as e-mail attachments (.wav) and system notifications
DNS (DYNDNS) support with third party

TOP

Environmental

Physical Dimensions

Measurements: 10.04x8.27x1.77 inches (25.5 x 21.0 x 4.5 cm)
Weight: 4.070 lbs. (1.848 kg)

Environmental

41°F - 95°F (5°C - 35°C) operating temperature
5% - 90% non-condensing humidity

Power Supply

Input 100 - 240 VAC; 50/60 Hz; 0.5 A
Output 12.0 VDC; 1 A

Regulatory Compliance/Environmental

FCC Part 68, UL 1950, CSA 22, FCC Part 15 Class B

Testing Capabilities

Remote testing and VoIP diagnostics
Power-up diagnostics
