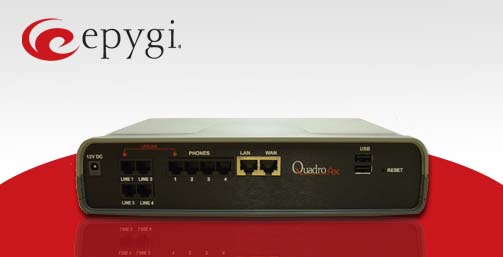

Quadro 4X

A Full Featured iPBX for the Small Business

Datasheet

Connectivity

Premise Connections

4 short-loop FXS ports (RJ11)
1 Ethernet 10/100BASE-T port (RJ45) (LAN + Support for IP Phones)
1 USB master connection

Uplink Connection Options

2 FXO ports to the Central Office (RJ11) or ISDN S0 (RJ45)
Ethernet 10BASE-T (RJ45)

USB Expansion

USB memory cards for additional voice mail and call status storage

Telephony

Voice Features

Voice Coding G.711, G.726 (16, 24, 32, 40 Kbps), G.729
NAT traversal (both manually and STUN)
VAD, CNG, G.168 echo cancellation
Lifeline POTS (single line)

PBX Features

Call hold
Call transfer
Call conferencing
Call blocking
Call waiting
Voice mail
Hold music
Auto attendant
Distinctive ringing/Group ringing
Hunt group
Call statistics
Speed dialing
Caller ID
External user directory
FAX relaying
Busy auto redial
Multiple user extensions (physical/virtual)
T.38 fax support (SW version 2.3)

Call Signaling

SIP

POTS Signaling

Loop start
DTMF
Caller ID support
FSK and DTMF Caller ID support

TOP

Internet

System Configuration

Hyper Text Transfer Protocol (HTTP) server; WEB browser based configuration
Hyper Text Transfer Protocol Secure server (HTTPS)
Password control
Remote diagnostics and software upgrade

IP Services

Network Address Translation (NAT)
IPSec VPN with DES and 3DES encryption in tunnel mode
Manual and automatic IKE key support
Firewall security via:
   Intrusion Detection System
   Network Address Translation
   Policy and service-based filtering
   Stateful inspection firewall
DHCP server on the LAN side
DHCP client on the WAN side
DNS server with forwarding functionality
Simple Network Time Protocol (SNTP) for computer clock synchronization
PAP/(MS)CHAP authentication for PPP connection to the ISP
IP DIFFSERV for QoS
Mail client to send voice messages as e-mail attachments (.wav) and system notifications
DNS (DYNDNS) support with third party

TOP

Environmental

Physical Dimensions

Measurements: 10.04x8.27x2.4 inches (25.5 x 21.0 x 6.1 cm)
Weight: 4.293 lbs. (1.949 kg)

Environmental

41°F - 95°F (5°C - 35°C) operating temperature
5% - 90% non-condensing humidity

Power Supply

Input 100 - 240 VAC; 50/60 Hz; 0.5 A
Output 12.0 VDC; 3 A

Regulatory Compliance/Environmental

FCC Part 68, UL 1950, CSA 22, FCC Part 15 Class B

Testing Capabilities

Remote testing and VoIP diagnostics
Power-up diagnostics
