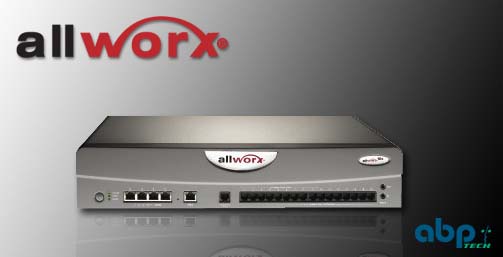

Allworx 10x ™ Small Business System

Allworx 10x




















The All-in-One Small Business Solution for Phones, PC Networking and Group Productivity

The Allworx 10x™ is run by a single system, rather than two to five systems, such as a network server, a phone system, and an Email server, etc. The Allworx user has a single profile accessible by the phone system, network, Internet manager, messaging, and group collaboration functions. This streamlined design increases system performance, dramatically improves reliability, and significantly reduces user and system administrator tasks.

It’s all in one server, so there’s less hardware and software to connect, configure, store and maintain. Other systems include multiple servers and hardware components all wired together, each with their own software to learn, use, and manage.

The Allworx 10x™ delivers more services that small businesses need, without extra costs. Critical things like backup service, a high-end firewall, a single inbox for all messages, online scheduling, and more. In addition, the enterprise-level calling features are more sophisticated than most the small business expect the services provided, such as enterprise-level calling features, can make a big difference in daily communications.

The Allworx 10x™ costs less than all of its competitors. The benefits of true convergence have a tangible impact on your bottom line.

Features
Downloads
Allworx IP Phones

Features

Hardware

Power On/Off Indicators

4 Fully-switched 10/100 Base-T Ethernet ports supporting your LAN data network and up to 40 VoIP phone users

One RJ-45 10/100 Base-T WAN port for Internet connection via xDSL, Cable, or T1

Power fail port for dedicated analog phone extension, ensuring phone access during power failure 16 Configurable ports supporting up to 13 Analog extensions or up to nine outside lines (which can support up to 40 SIP-based Voice over IP phones), including:

Three fixed Central Office (CO) lines-RJ-11 dedicated loop-start FXO ports Six dual mode ports (CO or internal extensions)-RJ-11 loop-start FXO/FXS auto-configuring

Seven dedicated analog extensions-RJ-11 FXS ports for analog phones or fax Up to 100 user extensions (individuals) and 100 system extensions (conference rooms)

13 Direct Inward Dialing DID capable ports Nine unique auto attendants to provide support for multiple businesses, identities or languages

Two 3.5mm mini jacks for Overhead Paging support and for the Music on Hold Option

TOP

Software

File Server supports CIFS Windows Compatible (Win '98, NT, 2000, ME, XP) with the Microsoft Server Message Block (SMB) protocol

Web Server, Internal Intranet, and External Internet (HTTP, FTP) support for CGI and FTP

Automatic, template-based, customizable generation of per-user and company internal web pages

Email Server support for POP3/SMTP/Email Internet standards

Firewall: Stateful Packet Inspection technology for enhanced security

Device Administration Features

Web-based device setup and diagnostics

Simple wizard-bsed user administration and management

Hot Data back-up facility

Device self-test and troubleshooting

Phone Interface

Fax machine support; creates dedicated line without requiring new CO line; system automatically utilizes line for outgoing calls when not in use

Industrial strength surge protection built into the nine CO trunk lines

TOP

Voicemail

16-port voicemail system

Up to three hours of storage capacity per user

Date and time stamping

Messages can be listened to, saved, deleted, or forwarded to another extension

Direct access to voicemail from on and off site

Message Waiting and New Call indicators supported through phone and client software

Listen to voicemail in your Email Inbox

Listen to and answer Email via phone

Follow-me calling

Routing can follow multiple phones and ultimately connect to an outside line (including cell phones)

Establish seven unique phone Presences (including In Office, At Home, and On Vacation), each with its own routing rules and filters

Set Presence status via phone or Allworx software

Filter rules drive routing paths based on incoming Caller ID

Security

Outbound call control with PIN codes and system-wide blocking

Password protection at both user and administration levels

Call detail reporting of all phone system activity with easy export to MS Excel or any standard spreadsheet program for further analysis

System backup and restore — automatically saves configuration attributes and voicemail messages

TOP

Remote office and site-to-site

Remote office and Small Office Home Office (SOHO) telephony support

Remote SIP Proxy server support

Site-to-site phone capability via WAN-based SIP

Industry compatibility

Fully supports selected VoIP phones, including Cisco 7960, 7940, 7912, and 7905.3

Compatible with VoIP phones that follow SIP protocol

Compatible with softphones, including Pingtel Instant Expressa, EyeP Media, and xTen.3

Supports G711 and G729 endpoint connections

Compatible with Internet Telephony Service Providers (ITSPs)

TOP

High end calling features

Minimum of 3 simultaneous 3-way conference calls of 3 participants each; more available

Determined by on CO lines and type of phones

Programmable dialing plans route your calls through lowest-cost telephone providers

Broadcast message capability — internal or external distribution lists

Call Viewer — View the status of headsets, CO lines, parked calls and call queues

Powerful call control functions, including:
– Audio text
– Audited outside line access
– Call blocking
– Call forward and transfer
– Call hold
– Call monitors
– Call park and retrieve
– Call pickup
– Call waiting
– Call transfer
– Call waiting
– Caller ID
– Dial by name or extension; dial from directory
– Distinctive ring
– Do not disturb
– External call diversion
– Flexible numbering plan
– Hunt groups
– Internal extension distinctive ring
– Multiple line access
– Operator manager
– Private lines
– Prepending digits
– Speed dialing
– Uninterrupted record time

TOP

Secured Internet Access

Stateful Packet Inspection (SPI) firewall security

Network Address and Port Translation (NAPT) mode Network Address Translation (NAT)

Point-to-Point Tunneling Protocol (PPTP) security

Ethernet-based WAN access direct from DSL or cable modem

Static IP or DHCP client support on WAN

Demilitarized Zone (DMZ) mode to protect

WAN interface

SIP Proxy registration services provided through Allworx

Virtual Private Network (VPN) - secure site-to-site and remote access

Networking

Public WAN interface and fully secured LAN subnet

LAN file server — MS Windows compatible via SMB/CIFS protocol

Email server — POP3 and SMTP Email standards

Web server — Intranet and Internet with HTTP and FTP functionality

Web server — Intranet and Internet with HTTP and FTP functionality

Up to 253 hosts supported on LAN using DHCP

Built-in company Internet and Intranet site

Dynamic Host Configuration Protocol (DHCP) server to LAN

DHCP client support on WAN

Fully integrated Domain Name Server (DNS) server

TCP/IP routing support between LAN/WAN

Point-to-Point Protocol over Ethernet (PPPoE) capability

Supports classful and classless routing

TOP

Remote office and site-to-site

PPTP-based Virtual Private Network � one-time license fee for up to 16 simultaneous users

Access Allworx remotely via VPN and get full functionality (email, calendaring, shared files, etc.)

Remote office analog phone capability (compatible with AudioCodes, SIPExpress and Cisco ATAs)

VoIP via WAN port using SIP protocol:
Site-to-site phone via WAN-based SIP Single office remote users via VoIP phone

TOP
