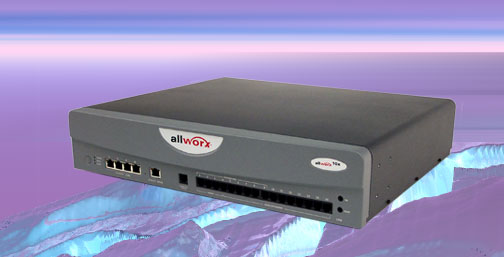

Allworx 10x ™ Small Business System

The All-in-One Small Business Solution for Phones, PC Networking and Group Productivity

The Allworx 10x™ is run by a single system, rather than two to five systems, such as a network server, a phone system, and an Email server, etc. The Allworx user has a single profile accessible by the phone system, network, Internet manager, messaging, and group collaboration functions. This streamlined design increases system performance, dramatically improves reliability, and significantly reduces user and system administrator tasks.

It’s all in one server, so there’s less hardware and software to connect, configure, store and maintain. Other systems include multiple servers and hardware components all wired together, each with their own software to learn, use, and manage.

The Allworx 10x™ delivers more services that small businesses need, without extra costs. Critical things like backup service, a high-end firewall, a single inbox for all messages, online scheduling, and more. In addition, the enterprise-level calling features are more sophisticated than most the small business expect the services provided, such as enterprise-level calling features, can make a big difference in daily communications.

The Allworx 10x™ costs less than all of its competitors. The benefits of true convergence have a tangible impact on your bottom line.

Features

Resources

Features

Hardware

Power On/Off Indicators

4 Fully-switched 10/100 Base-T Ethernet ports supporting your LAN data network and up to 40 VoIP phone users

One RJ-45 10/100 Base-T WAN port for Internet connection via xDSL, Cable, or T1

Power fail port for dedicated analog phone extension, ensuring phone access during power failure 16 Configurable ports supporting up to 13 Analog extensions or up to nine outside lines (which can support up to 40 SIP-based Voice over IP phones), including:

Three fixed Central Office (CO) lines-RJ-11 dedicated loop-start FXO ports
Six dual mode ports (CO or internal extensions)-RJ-11 loop-start FXO/FXS auto-configuring
Seven dedicated analog extensions-RJ-11 FXS ports for analog phones or fax
Up to 100 user extensions (individuals) and 100 system extensions (conference rooms)
13 Direct Inward Dialing DID capable ports
Nine unique auto attendants to provide support for multiple businesses, identities or languages

Two 3.5mm mini jacks for Overhead Paging support and for the Music on Hold Option

High capacity internal hard disk-minimum 60 GB (inside)

TOP

Software

File Server supports CIFS Windows Compatible (Win '98, NT, 2000, ME, XP) with the Microsoft Server Message Block (SMB) protocol

Web Server, Internal Intranet, and External Internet (HTTP, FTP) support for CGI and FTP

Automatic, template-based, customizable generation of per-user and company internal web pages

Email Server support for POP3/SMTP/Email Internet standards

Firewall: Stateful Packet Inspection technology for enhanced security

Device Administration Features

Web-based device setup and diagnostics

Simple wizard-based user administration and management

Hot Data back-up facility

Device self-test and troubleshooting

Simple software upgrades

Phone interface

Fax machine support — creates dedicated line without requiring new CO line; system automatically utilizes line for outgoing calls when not in use

Industrial strength surge protection built into the nine CO trunk lines

TOP

Voicemail

16-port voicemail system

Up to three hours of storage capacity per user

Date and time stamping

Messages can be listened to, saved, deleted, or forwarded to another extension

Direct access to voicemail from on and off site

Message Waiting and New Call indicators supported through phone and client software

Listen to voicemail in your Email Inbox

Listen to and answer Email via phone

Follow-me calling

Routing can follow multiple phones and ultimately connect to an outside line (including cell phones)

Establish seven unique phone Presences (including In Office, At Home, and On Vacation), each with its own routing rules and filters

Set Presence status via phone or Allworx software

Filter rules drive routing paths based on incoming Caller ID

Security

Outbound call control with PIN codes and system-wide blocking

Password protection at both user and administration levels

Call detail reporting of all phone system activity with easy export to MS Excel or any standard spreadsheet program for further analysis

System backup and restore — automatically saves configuration attributes and voicemail messages

TOP

Remote office and site-to-site

Remote office and Small Office Home Office (SOHO) telephony support

Remote SIP Proxy server support

Site-to-site phone capability via WAN-based SIP

Industry compatibility

Fully supports selected VoIP phones, including Cisco 7960, 7940, 7912, and 7905.3

Compatible with VoIP phones that follow SIP protocol

Compatible with softphones, including Pingtel Instant Expressa, EyeP Media, and xTen.3

Supports G711 and G729 endpoint connections

Compatible with Internet Telephony Service Providers (ITSPs)

High end calling features

Minimum of 3 simultaneous 3-way conference calls of 3 participants each;
more available

Determined by on CO lines and type of phones

Programmable dialing plans route your calls through lowest-cost telephone providers

Broadcast message capability — internal or external distribution lists

Powerful call control functions, including:

Audio text
Audited outside line access
Call blocking
Call forwarding
Call hold
Call park and retrieve
Call pickup
Call transfer
Call waiting
Caller ID
Dial by name or extension
Dial from directory
Discriminating ring tones on analog phones
Do not disturb
External call diversion
Flexible numbering plan
Hunt groups
Internal extension distinctive ring
Multiple line access
Operator manager
Prepending digits
Private lines
Speed dialing
Uninterrupted record time
