Vibe from Voipex

Maximize the potential use of VoIP across a given bandwidth

ViBE (Voice over IP Broadband Enhancement) is a solution that enables a dramatic reduction of bandwidth requirements, using a dynamic and seamless blending of Voice and Data with QOS, allowing FULL utilization of all purchased bandwidth and increasing overall throughput for both voice and data traffic.

ViBE virtually eliminates packet overhead, reducing the bandwidth required by a codec to its original size. In fact ViBE is so efficient that it can allow a 256K data link to carry 28 simultaneous G729 calls. In SIP Trunking applications the use of ViBE technology can allow an existing PRI to be replaced with a single 256K ADSL circuit.

By using lower cost dedicated ADSL links to carry VoIP traffic, ViBE enabled point to point links, to be installed much quicker than leased line and this will show significant cost savings, even in the first year.

This solution is indispesable for Telcos who offer VoIP, VOIP providers, iPBX hosting companies and large Enterprises who use VOIP

• Dynamically allocates the bandwidth available at the chosen codec size with vastly reduced packet overheads
• Implements byte level QoS allowing efficient usage of bandwidth for simultaneous VoIP and data traffic
• Provides automatic failover options to ensure resilience
• Can use a single ISDN BRI data link to carry 14 VoIP calls
• Can provide PRI capacity over ADSL circuits
• Allows faster deployment and ongoing cost savings

Voipex is the creator of the ViBE software solution which is designed to maximise the use of bandwidth for simultaneous Voice and Data applications across bandwidth delivering higher density of voice calls, security, QOS, resilience and more.

Contact ABP to learn more about this amazing solution.

Benefits
Specifications
Downloads

Benefits

Enables delivery of SIP trunking up to 28 ports on a single ADSL connection with only 256k upstream bandwidth, making it a replacement offering for E1 / T1 circuits

Built in switch over to secondary IP connectivity enables resilient services to be deployed

QOS and resiliency options enable delivery of chargeable SLA’s

Dynamic and seamless blending of Voice and Data using QOS allowing FULL utilisation of all purchased bandwidth increasing overall throughput for both voice and data traffic.

Enables low Broadband bandwidth to be used for VPN connectivity in branch / retail environments offering simultaneous Voice and Data access eliminating need for expensive network alternatives or multiple connections

Enables greater density of Centrex / Hosted sets per broadband or other circuit resulting in cheaper deployment costs.

Improves user experience increasing rate of adoption

Dynamic compression if required for voice traffic

Supports multiple Voice protocols

User benefits

Business quality voice traffic on IP

Savings by using a single circuit for both Voice and Data traffic

Overall a better user experience

Increased security for both voice and data traffic

TOP

Specifications

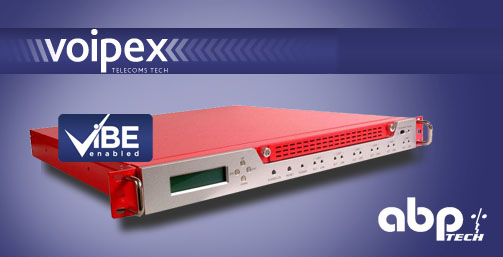

The SPS-501 can establish ViBE tunnels to ViBE enabled routers, bridges, VoIP gateways, or other ViBE enabled devices.

The SPS-501 manages and reports on licenses in use and allocated, providing data for customer billing and management.

10/100 Ethernet interfaces and Serial and Video interfaces for system management.

SPS-501 supports: 1000 ViBE licenses, Secondary Failover, 250 remote locations, Full ViBE QOS

Environment Temperature: Operating temperature 5°C ˜ 35°C. Non-operating temperature -40°C ˜ 70°C

Enclosure: Industry 19" rack-mountable 1U chassis. Dimension:
With Bezel - 15.5" (D) x 17.2" (W) x 1.7" (H) 394 (D) x 436 (W) 43.8 (H) [mm]
W/O Bezel - 14.4" (D) x 17.2" (W) x 1.7" (H) 365 (D) x 436 (W) x 43.8 (H) [mm]

System Cooling 1 x 12V, 40 x 40 x 28 mm fans; 2 x 12V, 40 x 40 x 56 mm fans

Power supply: Switched mode 220-240v

Regulatory: FCC Class B (Declaration of Conformity). CE (Declaration of Conformity)

TOP

Downloads

ViBE Enterprise Network Solution 191 KB
