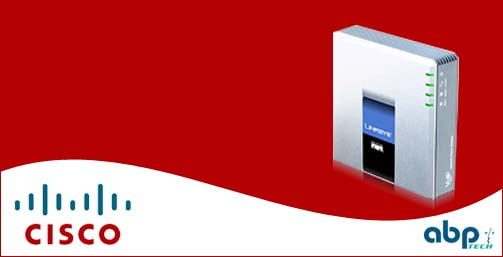

Cisco Phone Adapter 3102

Intelligent Call Routing Gateway Solution for VoIP. 1 Ports FXS, 1 Port FXO Analog Telephone Adapter, 1 Ethernet Port LAN

The SPA-3102 features VoIP adapter functionality found in the SPA-1000/1 with the additional benefit of an integral connection for legacy telephone network “hop-on, hop-off” applications. SPA-3102 users will be able to leverage their broadband phone service connections more than ever by automatically routing local calls from cell phones and land lines to a VoIP service provider and vice versa.

A typical user calling from a land line or mobile phone will be able to reduce and even eliminate international and long distance telephone charges by first calling their SPA-3102 via a local phone number or by using a telephone connected directly to the unit. The advanced authentication and call routing intel-ligence programmed into the SPA-3102 will connect the caller via the Internet to the far end destination with security and ease. Using the SPA-3102 at the far end, calls can be answered immediately or further processed as a local call to any legacy land line or mobile phone allowed by the SPA-3102 dial plan.

If power and/or IP network connectivity is lost to the unit or the VoIP service is down, calls can be sent to a traditional carrier via the FXO interface.

The SPA3102 was announced by Cisco as a replacement for the SPA3100.

Product Line Overview

Independently configurable phone ports;

Fax Tone Detection Pass-Through. Fax Pass-Though - Using G.711

Message Waiting Indication - Visual and Tone Based

Distinctive and configurable ringing;

Selective / Anonymous Call Rejection;

Off-Hook Warning Tone; Speed Dialing; Do Not Disturb;

Call Return, Call Waiting, Cancel Call Waiting

Caller ID with Name/Number, Caller ID Blocking

Call Waiting Caller ID with name and number;

Call Forwarding: No Answer/Busy/All; Call Transfer;

Three-Way Conference Calling with Local Mixing;

Call Back on Busy;

Call Blocking with Toll Restriction;

Delayed Disconnect, Hot Line and Warm Line Calling;

Downloadable firmware updates;

Speed Dialing of 8 Numbers / Addresses

Terminating Impedance Agnostic - 8 Settings

VoIP to PSTN Gateway Enable/Disable

VoIP Caller Auth Method (None, PIN, HTTP Digest)

VoIP PIN Max Retry Setting

One Stage Dialing Enable/Disable

VoIP Caller ID Pattern Matching

VoIP Access Allowed Caller List (No Further Authentication)

VoIP Caller PIN and Associated Dial Plan

PSTN to VoIP Gateway Enable/Disable

VoIP Caller Auth Method (None, PIN, HTTP Digest)

Ring Through to FXS Enable/Disable. Ring Through Tone - Configurable

Caller ID (Bellcore Type 1) for VoIP Service Access. Caller ID Enable/Disable

Access Allowed Caller List (No Further Authentication)

Caller PIN and Associated Dial Plan

Least Cost Routing (via Outbound VoIP - Line1 Dial Plan)

VoIP Answer Delay Timer. PSTN Answer Delay Timer

VoIP PIN Digit Time-Out Timer. PSTN PIN Digit Time-Out Timer

PSTN-to-VoIP Call Max Dur Timer. VoIP-to PSTN Call Max Dur Timer

PSTN Ring Through Delay Timer. PSTN Dialing Delay Timer

VoIP DIG Refresh Interval Timer

PSTN Ring Time-out Timer

PSTN Disconnection Detection Features

CPC (Removal of Tip/Ring Voltage Momentarily). Polarity Reversal

Long Silence (Configurable Time Setting). Disconnect Tone (e.g. Reorder Tone)

Silence Threshold

International Control Features
• FXO Port Impedance - Configurable to 16 settings;
• Ring Frequency - Configurable
• SPA to PSTN and PSTN to SPA Gain Settings

On-Hook Speed Setting

Ringer Impedance Setting

Line-in-Use Voltage Setting

TOP

Product Application Scenarios

Corporate Private Telephony Networks

Internet Telephony Service Provider Network for Residential Users ISP Voice Services

OPX Off Premise Extensions for PBX or IPBX (Phone and FAX)
