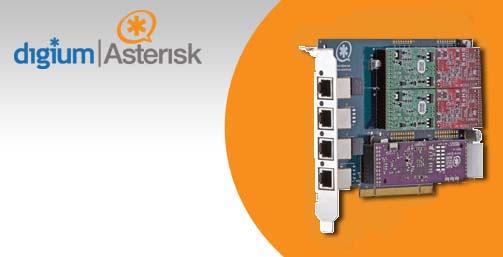

Digium AEX/TDM410 cards

The Soho Solution - Scalable, Effective and Cost Efficient

The AEX/TDM 410 series card supports from one to four telephone interfaces for connecting analog lines to a PC. It is possible to create SOHO (Small Office Home Office) telephony environment with all of the sophisticated features of a more expensive phone system by using Asterisk PBX software an standard PC hardware.

The 410 series card features Digium's patent-pending VoiceBus technology on a PCI interface. It is compatible with Digium’s existing station and trunk analog modules.

The 410 series card brings the system price to a low level by taking the place of an expensive channel bank. FXO and FXS modules are compined to create a solution to support a range of telephones. Scale this solution by adding additional cards and/or FXS or FXO modules. It also provides the capability of connecting to hardware-based echo cancellation module VPMADT032, providing 128ms (1024 taps) of AT&T certified Toll Quality G.168 compliant echo cancellation

The naming convention for the card bundles is as follows:

TDM4XYZ or AEX4XYZ, where

TDM is a PCI 1.1 interface card

and AEX is a PCI-Express x1 telephony interface card

X represents # of Station (FXS) modules, 0-4, Y represents # of Trunk (FXO) modules, 0-4 and Z represents either: B for units that are Software echo cancellation E for units that use Hardware Echo Cancellation.

Contact ABP for more details about Digium's product line.

Feature List

Caller ID and Call Waiting Caller ID

ADSI Telephones

PCI Half-length Slot

RJ-11C Connector

TOP

Technical Specifications

500-Mhz Pentium III or better with 64MB RAM

Must have available PCI Slot

Operation Range: 0° to 50°C, 32° to 122° F

Physical Specifications

Operation Range: 0° to 50°C, 32° to 122° F

Storage Range: -20° to 65°C, 4° to 149° F

Humidity: 10-90% non-condensing

TOP

Product Applications Scenarios

Small Office Home Office (SOHO) applications

Gateway Termination to Analog Telephones

Add Inexpensive Analog Phones to Existing PBXs

Wireless Point-to-Point Applications between Asterisk Servers

TOP

Downloads

Analog AEX/TDM410 series Product Sheet       1,01MB

VPMADT032 Product Sheet       670KB
