Patton's Award Winning Ethernet Extenders

Extend Long-Range Ethernet Farther and Faster.

Use CopperLink™ Ethernet extension solutions to extend Ethernet services to your users located far beyond distance limitations. With Patton's Ethernet Extender solutions you can extend long-range Ethernet over existing voice-grade copper wiring, up to 5 miles over a single twisted pair.

Ethernet Extension
Extend 10/100Base-TX Ethernet well beyond its 328-foot (100-meter) limitation over a single unshielded twisted pair (UTP), Cat 5e/6/7, or even coaxial cable.

Operates Over Twisted Pair
Realize fiber-optic speeds without the expense-- and hassle-- of installing new cables or line-of-site wireless circuits.

Plug and Play
Set these units up straight out of the box. No configuration is required. Auto-sensing 10/100 Ethernet ports support full or half duplex operation.

Multiple Line Rates Supported
Switch-selectable rate mode options optimize rate and reach for the noise environment, wire gauge/type and length.

Transparent LAN Bridging
Bypass network configuration requirements by transparently passing all higher layer protocols-- including 802.1Q VLAN frames (tagged and untagged). Data-transmission mechanism is fully transparent to such IP video compression schemes as MPEG-4, H.264 and MJPEG.

ABP is the Preferred Partner in the Americas for the CopperLink Ethernet Extender products. Check out the Ruggedized options and other extenders that give the same benefits over different infrastructure technologies.

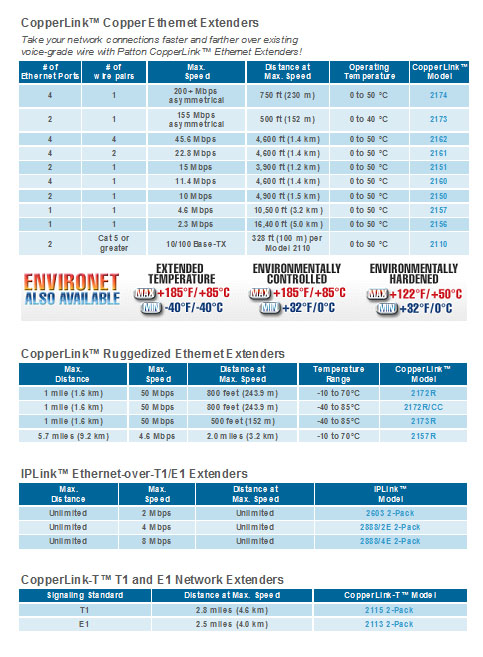

*Click on the image to enlarge
