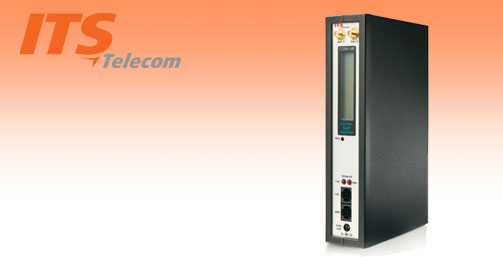

ITS CGW-VIP


Leading the Next Generation of VoIP to GSM Gateways

The CGW-VIP is a unique first-of-its-kind cellular gateway, based on pure-IP technology. The CGW-VIP provides a resilient platform specifically designed to handle both voice and managed data traffic, with the ability to ensure priority and quality of service for voice calls.

It has a friendly user interface for easy management and operation using common web browsers, enabling both local and remote management access.

The ultra-high performance CGW-VIP connects to the office IP network, efficiently routing all calls from the IP network to the cellular network and vice versa. This
capability drastically reduces communication costs by enabling the use of inexpensive VoIP calls and letting companies take full advantage of their VPN arrangement on the cellular network.

The CGW-VIP is especially cost-effective for companies with extensive use of cellular and long distance calls. Aside from providing significant cost savings, offices can connect branches, remote offices, or teleworkers and establish an efficient and free-of-charge virtual voice private network. Customers can easily add redundancy and resiliency for their key services in case of traditional network outage.

CGW-VIP can also serve as a last mile solution, providing rural telephony in places where no terrestrial infrastructure is available.


        • VoIP & cellular convergence
        • 2 cellular channels
        • 75% reduction in roaming charges
        • Virtual voice private network for remote offices
        • Solution for last mile and redundancy
        • Superb audio quality
        • Easy to install, use, and maintain

Contact ABP to learn more about this amazing gateway.

Key Features
Technical Specifications
Downloads

Key Features

    Supports VoIP, SIP, and GSM connections

    Interoperates with all standard IP-PBX/softswitch equipment

    Embedded web server

    Local and remote management via user-friendly web interface

    Local and remote upgrades of configuration files and firmware

    Supports registration of SIP extensions

    Enables creation of a virtual office with remote extensions

    Built-in firewall and NAT

    Built-in Least-Cost-Routing (LCR)

    LIP/CLIR

    TOP



Technical Specifications

Management and Monitoring

SIM installation: standard SIM card holder
GUI: web-browser based interface
Remote access interfaces: LAN
MMI: LCD, LEDs

VoIP

Voice signaling: SIP
Local SIP server/register
Codecs: G.711 PCM (μ/A-Law), G.729
Echo canceler: G.168-2002

Cellular

GSM module: integrated quad band 850/900/1800/1900 MHz
GSM module: 2
Antenna: 2 external 2,5 dB 50
impedance, 2m cable length, SMA
Antenna interface: SMA connector

Hardware Specification

Dimensions: (H*W*D): 214*129*46 mm / 8.4*5*1.8”
Weight (unit only): 0.8 kg / 2.64 lbs
Weight (packing): 1.4 kg / 3.1 lbs
Operating temperature: 0ºC – 40ºC / 32ºF – 104ºF
Humidity: 5% – 95%
Power supply: 9 VDC 2.6A

LAN / WAN 10/100 Base-T, RJ-45
