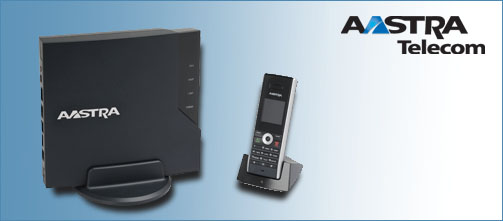

Aastra MBU400

Affordable, scalable multi handset SIP DECT mobility solution specifically designed for Small Business

Bringing superior DECT 6.0 based technology to the Small Business market, the MBU 400 offers a reliable, cost effective office mobility solution. Consisting of the MBU 400 gateway, which supports eight unique SIP registrations, one analog FXO port, and up to eight 420d handsets, the system can function as a standalone SIP DECT solution or can be tightly integrated with the AastraLink Pro™ 160 IP Key system.

DECT technology virtually eliminates issues of dropped calls, interference, security and range by employing IP DECT access points that seamlessly “handoff” calls and enable roaming. This system is ideal for any single or multi-location business, retail or institutional setting that requires mobile employees to be available to take or receive calls at any time.

Aastra Cordless SIP deployment using DECT has the following advantages:

8 SIP unique registrations, 8 SIP handsets (420d only) 1 FXO port and 1 LAN port
Supports up to 4 concurrent calls (3 SIP, 1 Analog)
Intercom between handsets
Graphical color display
Talk time: 12 hours/Standby time: 200 hours
170 entry phonebook
50m/150ft indoor Range
Speaker phone
Polyphonic ring tones
Vibrate alerting
DECT 6.0
Manageable via: TFTP configuration file, web UI and AastraLink Pro 160
Caller ID Name and Number
Call Waiting Name and Number
Call Transfer
Call Hold
Call Forward
Message Waiting Indication (MWI) Voltage and FSK
Do Not Disturb (DND)
Call groups

Contact ABP to learn more about these Aastra™ cordless phones.

Features
Technical Specifications
Downloads

Features

Fully Integrated Solution

The MBU 400 DECT gateway supports eight unique SIP registrations and one FXO port providing a fully integrated SIP and Analog service for Small Business. It offers true
multi-user capability with capacity for up to eight handsets with eight individual VoIP telephone numbers and, unlike traditional cordless solutions, allows 4 simultaneous calls at once. The MBU 400 can also be provisioned and managed via the AstraLink Pro™ 160 web UI, providing a single tool for configuration and maintenance of the handsets and other Aastra SIP terminals.

Superior Technology

Employing DECT 6.0 technology, the MBU 400 offers virtually interference-free performance in any work or residential environment. The technology employs advanced encryption providing an extra layer of security to calls and improving overall wireless call quality.

Feature Rich Handsets

The 420d handset is equipped with a backlit color graphical display providing phone status, Caller ID, Call Waiting, DND, Transfer, Hold and a variety of information at-glance.
This stylish handset also offers features such as speakerphone, intercom between handsets, vibrate functionality, polyphonic ring tones, twelve hours talk time capability and a large directory for up to 170 entries.

Scalability

The MBU 400 can expand with a growing Small Business. By simply adding up to seven additional handsets, the MBU 400 can easily grow to meet changing business needs. When
integrated with the AastraLink Pro™ 160, provisioning of the handsets is effortless.

TOP

Technical Specifications

DECT 400d HANDSET

Display (LCD)
1.5” Color LCD with backlight (64K color support)
128x128 pixel resolution display
Illuminated display and keypad

Physical
Integrated DECT Antenna
Handsfree Speakerphone
Built-in Vibrate/Trembler function
Headset Jack (2.5mm)
Removable Belt Clip support (swivel & belt clip options)
Hearing Aid Compatibility

Powering
Battery: 650mAh Lithium Ion

Performance
Frequency 1.92-1.93GHz (DECT)
Approx Range: 300m (985ft) outdoor, 50m (165ft) indoor
Up to 12hrs talk time
Up to 200hrs standby time
Visual Coverage Warning
Low Battery Warning

Mobility Base Unit

Features. Support for 8 paired 420d DECT handsets each with a unique VoIP telephone number. Centralized/Shared Phonebook (170 entries) for all paired handsets. Embedded HTTP web-server for configuration. Up to 8 simultaneous unique SIP Trunks (registrations/accounts). Up to 4 simultaneous active calls supported (3 VoIP, 1 PSTN). 3-party Conferencing Support. Embedded Web Management Interface (HTTP). STUN Client. NAT support. HTTP/TFTP firmware upgrades. DHCP Option 66 support. Remote firmware upgrade over HTTP/TFTP. Configuration using Web Management Interface or via HTTP/TFTP server. Support for periodic download of configuration files via HTTP/TFTP. Embedded Music-on-Hold support for PSTN calls on HOLD PSTN/FXO. Interface Flash Support.

Wireless. DECT 6.0 – 1.92-1.93Ghz (North America), 1.88-1.90Ghz (EMEA)
Integrated Antennas

Codec Support
G.711 (u-law, a-law)
G.729A/B
iLBC
Voice-Activity-Detection / Silence Suppression support
Adaptive Jitter Buffer

TOP

Downloads

Aastra MBU400 Spec Sheet 627KB
